Mini LED Neon Flex flexible LED neon rope light with IP66 protection rating and ultra thin 8 by 16 millimeter square profile for indoor outdoor

Name: Mini LED Neon Flex flexible LED neon rope light with IP66 protection rating and ultra thin 8 by 16 millimeter square profile for indoor outdoor
Brand: Vasten
Price: 1 USD

Housing Color : Milky White

Dimmable : Yes, compatible with dimmers

Cuttable length : 100cm

Powerconsumption : 5W to 15W per meter

Waterproof Rating : IP65 or higher

Waterproofrating : IP65/IP67

Applications : Signage, decoration, architectural lighting

Work Lenght : 100m/328'

Light Type : SMD LED

Operatingtemperature : -20°C to 50°C

Operating Voltage : 12V or 24V DC

Lightingtype : Mini LED

Light Source : SMD LED

Fragile : No

Cuttablelength : Every 25mm or 50mm

Material : ECO PVC

Power Consumption : Low power consumption

Heat Emission : Low heat generation

Brand Name : Vasten

Model Number : TA-CS-2835P-220V

Certification : CE & RoHS

Place of Origin : China

MOQ : 100 meter

Price : Negotiation US$/Meter

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 3000 meter per month

Delivery Time : 3-5 days

Packaging Details : 50 meter per carton CTN size: 33*33*32cm

Protection : IP65

Contact Now

Product Overview

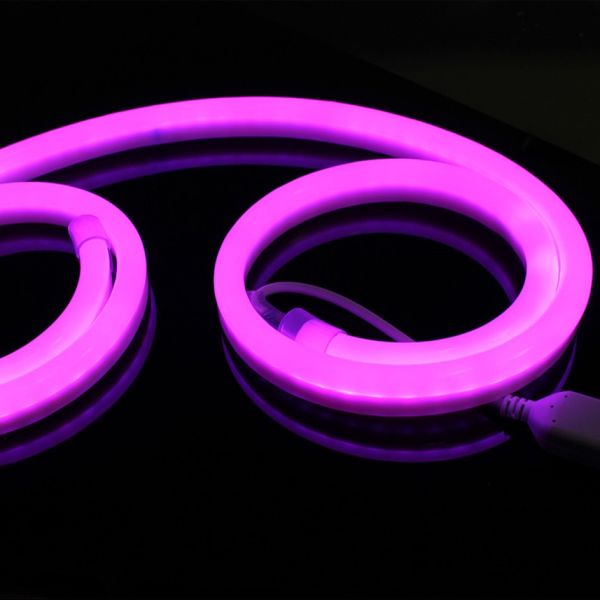

This SMD2835 neon rope light uses a unique semi-transparent milky-white ECO PVC as the substrate, with ultra-light-stable SMD2835 LEDs as the light vector. At just 8×16mm square cross-section, it is mini and flexible — perfect for LED lighting design where space is tight but brand-consistent glow is essential. It directly replaces fragile, high-voltage glass neon in architectural outlining, commercial signage, and decorative applications, with 90% energy savings, 12W/m power consumption, and a 50,000-hour rated lifespan.

Available color: Pink (primary). Also available in Red, Blue, Yellow, Green, Orange, White, Warm White.

Voltage variants:

110V AC version — Model TA-CS-2835P-110V
220V AC version — Model TA-CS-2835P-220V

Parameter	110V AC Version	220V AC Version
Model	TA-CS-2835P-110V	TA-CS-2835P-220V
LED Type	SMD2835 (Epistar chip)	SMD2835 (Epistar chip)
LED QTY/m	120 LEDs/m	120 LEDs/m
Power Consumption	8W/m	8W/m
Lumen Output	450–550 lm/m	450–550 lm/m
Profile	8×16mm square (mini type)	8×16mm square (mini type)
Jacket Material	ECO PVC, Milky White	ECO PVC, Milky White
Min. Cutting Length	50cm / 19.7″ (120 LEDs)	100cm / 39.4″ (120 LEDs)
Max. Run Length	100m / 328ft	150m / 492ft
Protection Rating	IP66	IP65
Min. Bend Diameter	4cm (horizontal bend)	4cm (horizontal bend)
Ambient Temp.	-30°C ~ +45°C	-30°C ~ +45°C
Certification	CE & RoHS	CE & RoHS

Data sourced from Vasten product specifications.

Detailed Feature Breakdown

1. Milky-White ECO PVC Jacket — Optimized for Even Glow

The semi-transparent milky-white PVC substrate is purpose-engineered for optical performance:

Light homogenization: The milky-white diffuser jacket scatters direct SMD2835 emission into a continuous, 120° linear glow — no visible LED dots even at close inspection, no dark spots between cut points or LED clusters.
Daytime discretion: The milky-white profile has low visual impact on the install surface during daytime; at night, it delivers clean, uniform pink (or selected color) glow.
Eco-friendly: ECO PVC is RoHS/CE compliant, non-toxic, and flame-retardant — safe for indoor public spaces (hotels, department stores, entertainment venues).
Durability: UV-resistant and anti-aging formulation resists yellowing and brittleness in covered outdoor/semi-outdoor environments.
